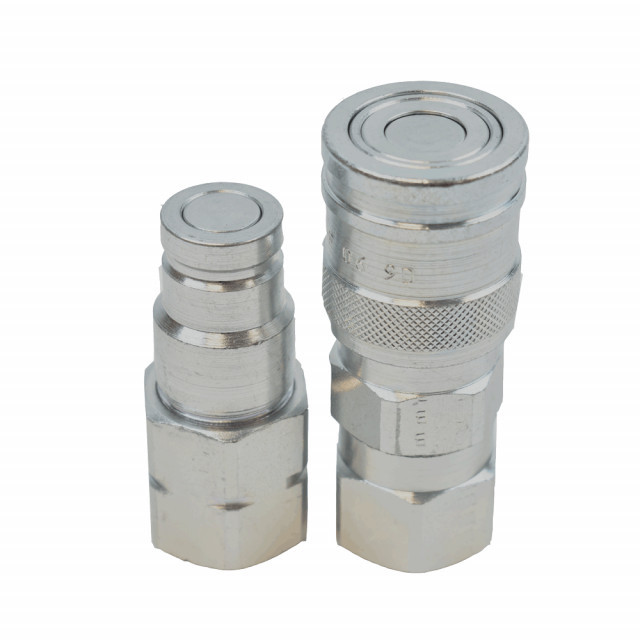

1/2" BSP Flat Faced Coupling Set (Pack Of 10 Sets)
Hydraulic quick connect couplings are robust and secure quick-action couplings designed for high-pressure operation with hydraulic applications. They provide a fast, convenient way to repeatedly connect and disconnect hydraulic fluid lines. Our range of couplings from VosWinkle are industrial quality, German made couplings offering the highest pressure ratings in the market.
TECHNICAL FEATURES AND OPTIONS
- Operating pressure: up to 350 bar
- Temperature: -20°C to + 100°C
- Sealing description: Nitrile NBR
- Material: High strength carbon steel
- Locking mechanism: Locking ball and safety lock
- Valving style: Flat face
- Connection system: Push
- Flow Rate: up to 750 L/Min
BENEFITS
- Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
- Minimal fluid spillage during disconnection, reducing fluid spillage to the environment
- Minimal air inclusion during connection
- Internal valve design creates minimal pressure drop, maintaing circuit efficiency in the system
- The modular design allows flexibility with a wide range of configurations
- Good resistance to pressure impulses
| Type | Coupling Set |
| Size | 1/2" |
