Convoluted HD Nylon Conduit
Manufactured from durable nylon, the tubing is suited to demanding environments where wiring is exposed to movement, vibration and general mechanical wear.

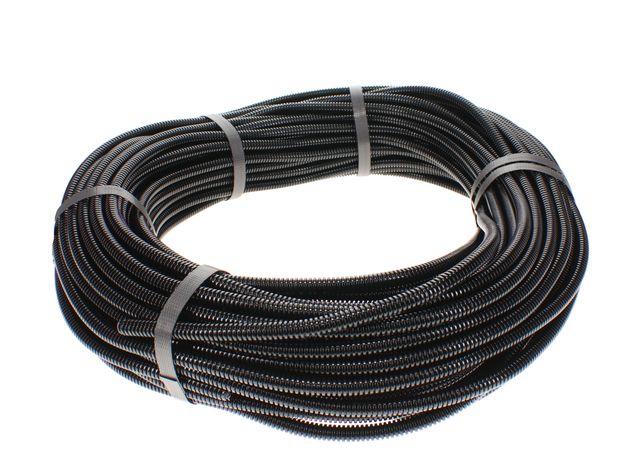

7.5mm Unsplit Conduit 50M Roll
Part No.
HEL1951
BLACK NYLON HEAVY-DUTY CONVOLUTED UN-SPLIT TUBING ā 7.5NW x 50M
Black Nylon Heavy-Duty Convoluted Un-Split Tubing is a robust and flexible cable protection solution designed to protect electrical wiring, cables and looms from abrasion, dirt and other external elements. Its convoluted construction allows the tubing to flex around bends while providing a protective outer layer around the enclosed wiring.
Manufactured from durable nylon, the tubing is suited to demanding environments where wiring is exposed to movement, vibration and general mechanical wear. The un-split design provides continuous protection around the cable bundle, making it particularly suitable for new installations, rewiring and the manufacture or refurbishment of machine wiring looms.
FUNCTION AND OPERATION
- Protects electrical cables and wiring looms from external elements
- Provides protection against abrasion and mechanical damage
- Flexible convoluted construction allows the tubing to follow bends
- Helps keep wiring bundles organised and protected
- Un-split construction provides continuous protection around the loom
- Suitable for use with compatible convoluted tubing connectors and fittings
TECHNICAL DETAILS
- Type: Heavy-duty convoluted cable protection tubing
- Material: Polyamide 6 (nylon)
- Colour: Black
- Design: Un-split
- Nominal Width: 7.5NW
- Internal Diameter: 6.7 mm
- Outside Diameter: 10.0 mm
- Coil Length: 50 metres
- Application: Electrical cable and wiring loom protection
- Temperature range: -40Ė to + 120ĖC
- Flame retardant: Yes
- Halogen free: Yes
- Permanent vibration DIN 53442
- UV resistance DIN EN ISO 8580
TYPICAL APPLICATIONS
Suitable for protecting wiring and cable looms in:
- Construction machinery
- Agricultural machinery
- Plant and industrial equipment
- Commercial vehicles
- Automotive applications
- Workshop and electrical installations
- Machine wiring loom manufacture and refurbishment
The 7.5NW size is suitable where the cable bundle can be accommodated within the 6.7 mm internal diameter. Always allow sufficient space for the cables to move freely without overfilling the tubing.
IMPORTANT INFORMATION
The un-split construction means that cables normally need to be installed through the tubing before the loom is connected or terminated. This provides continuous protection around the wiring but makes it less suitable for retrofitting around an existing terminated loom than split convoluted tubing.
When installing, avoid excessive stretching or sharp bends that could restrict the cable bundle. Use suitable connectors, clips or fixing points to secure the tubing and prevent unnecessary movement or chafing during machine operation.
| Pack quantity | 1 |
| Weight | 0.7 |
