Deutsch Dt 2 Way Wedgelock - OEM Number: W2S-Sdt-24V

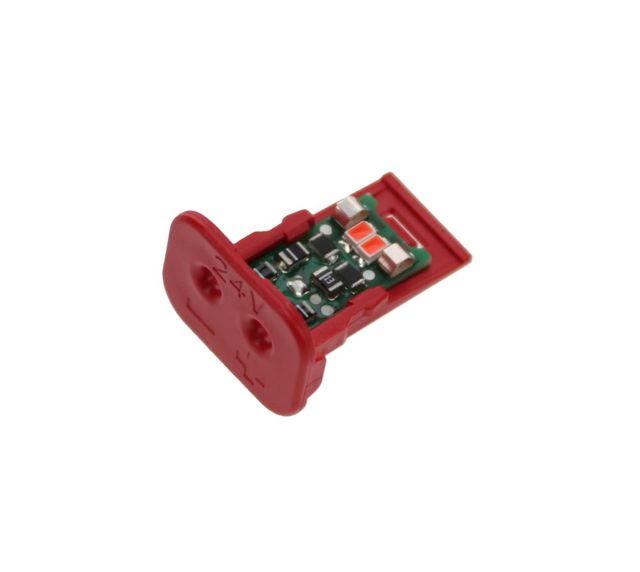

Deutsch DT 2 Way Wedgelock

DT LED Wedgelock

From Deutsch, this Terminal Position Assurance (TPA) Wedge lock is for use with DT series connectors. Wedge locks are a type of accessory used with automotive connectors to ensure maximum contact retention.

Features and Benefits

• Operating Temperature Range of -55°C to +125°C
• PBT Housing
• 120 Ohm Resistor
• Red LED

W2S-SDT-24V Features:

Wire to wire connector system
2 position, 1 row
Centerline (pitch): 4.5mm
Dimensions (WxLxH): 15 x 31.6 x 15.8 mm
IP67 rating
UL 94V-0 flammability rating

IP67 Rating:
An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.
