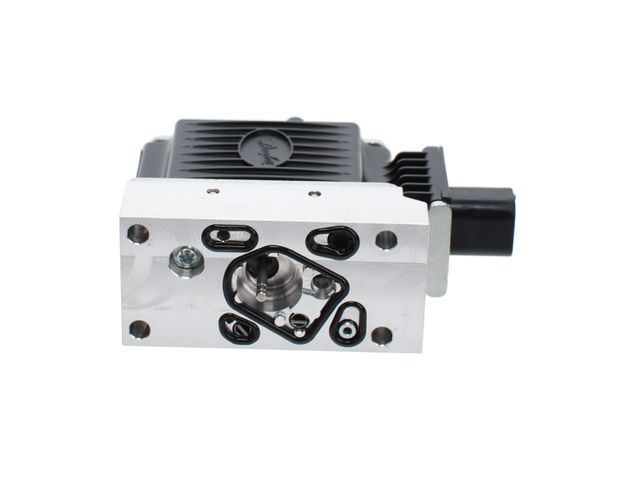

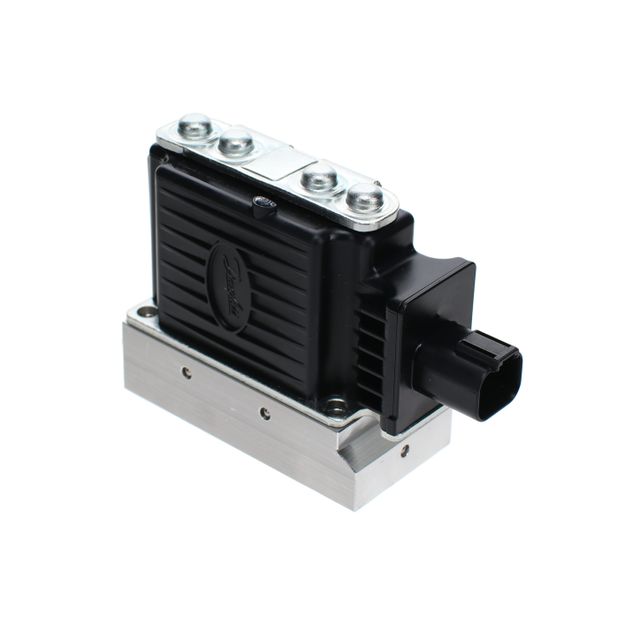

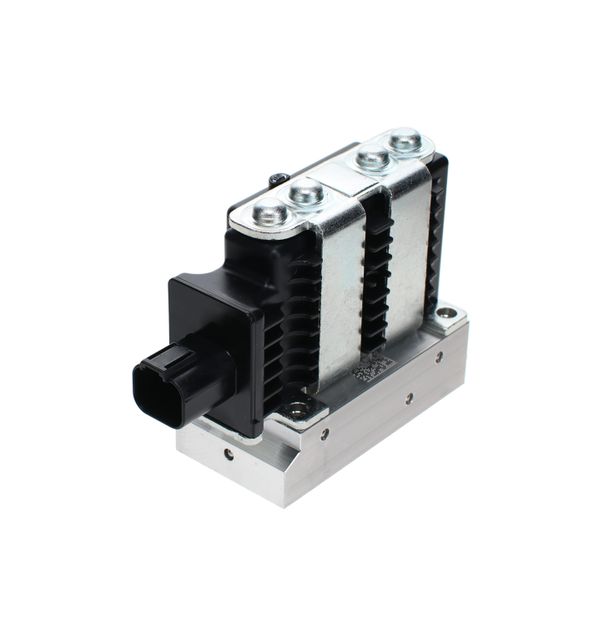

JLG Solenoid Control Valve - OEM Number: 1001105362

The JLG Solenoid Control Valve (OEM 1001105362) is a replacement hydraulic control component used within the main control valve assembly on selected JLG telehandlers. It provides electrically controlled hydraulic actuation, allowing the machine's control system to regulate hydraulic functions accurately and responsively.

JLG parts documentation identifies 1001105362 as a proportional solenoid module coil used within the lift section of the main control valve on applicable machines.

FUNCTION AND OPERATION

• Provides electrically controlled hydraulic actuation
• Controls hydraulic flow through the main control valve
• Allows proportional control of hydraulic functions
• Supports smooth and responsive machine operation
• Designed to operate reliably under continuous vibration
• Forms part of the machine's main hydraulic control system

TECHNICAL DETAILS

• OEM Part Number: 1001105362
• Type: Proportional solenoid module / control valve component
• Function: Electrical control of hydraulic flow
• Application: Selected JLG telehandlers and hydraulic systems
• Location: Main control valve, lift section
• Design: OEM replacement component

TYPICAL APPLICATIONS

OEM documentation identifies this component in the main control valve assemblies used on selected JLG machines, including:

• 3507
• 3508
• 3509
• 3512
• 3513
• 4007
• 4008
• 4009
• 4012
• 4013
• 4017

The precise application depends on machine configuration and serial number, so compatibility should always be confirmed before ordering.

IMPORTANT INFORMATION

Always confirm the OEM part number, machine model and serial number before ordering, as JLG hydraulic valve configurations can differ between machines.

Symptoms of a faulty solenoid module can include intermittent hydraulic operation, failure of a particular hydraulic function, sluggish or inconsistent response, or a hydraulic function failing to respond to electrical commands.

When replacing the component, inspect the electrical connector, wiring, valve section, seals and mounting hardware for signs of damage or contamination. Keeping the hydraulic system clean is particularly important when working on proportional valve components, as contamination can affect valve movement and hydraulic performance.
