Transducer, Angle-Duel Skyjack

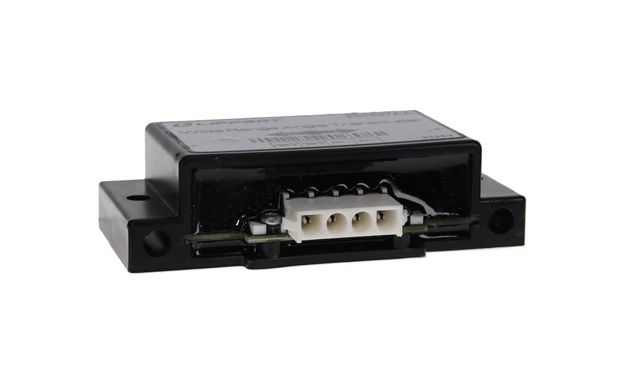

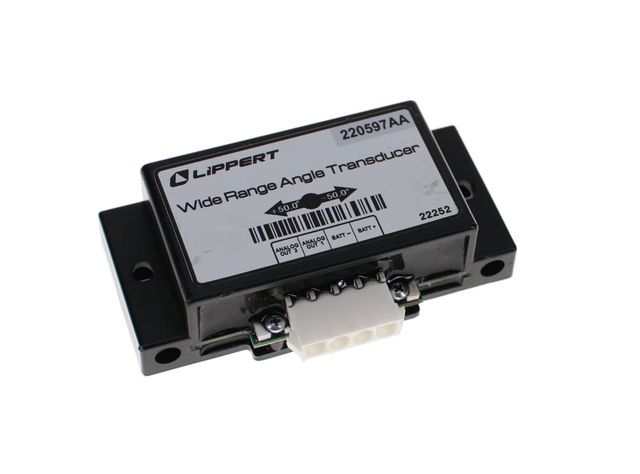

The Skyjack Angle Transducer (OEM 220597) is a replacement dual angle sensing component designed for compatible Skyjack electric scissor lifts. The transducer monitors the machine's angle and provides an electrical signal to the control system, allowing the machine to recognise its operating position and respond to changes in inclination.

As part of the machine's safety and control system, the angle transducer plays an important role in monitoring the platform's operating conditions. Replacing a faulty, damaged or unreliable transducer helps restore accurate angle sensing and the correct operation of associated machine safety functions.

FUNCTION AND OPERATION

• Monitors the angle or inclination of the machine
• Provides an electrical signal to the machine control system
• Supports the operation of angle-related safety functions
• Helps the control system identify changes in machine inclination
• Forms part of the complete angle transducer assembly
• Replacement for a faulty or damaged original transducer

TECHNICAL DETAILS

• OEM Number: 220597
• Manufacturer: Skyjack
• Component: Dual angle transducer
• Type: Electronic angle sensing device
• Application: Electric scissor lifts
• Installation: Angle transducer group
• Associated harness: Y-adapter angle transducer harness

TYPICAL APPLICATIONS

• Skyjack SJ3219
• Skyjack SJ3220
• Skyjack SJ3226
• Skyjack SJ4720
• Skyjack SJ4726
• Skyjack SJ4732
• Skyjack SJ4740
• Other compatible Skyjack scissor lifts

IMPORTANT INFORMATION

Before replacing the transducer, inspect the associated wiring harness, connectors, mounting hardware and transducer mounting position for damage or loose connections. Faults elsewhere in the sensing circuit can produce symptoms similar to a failed transducer.

Always confirm the machine model and serial number before ordering, as Skyjack angle-sensing arrangements can vary between machine generations. Correct installation and calibration, where required by the machine, are important to ensure the angle monitoring system operates correctly.
