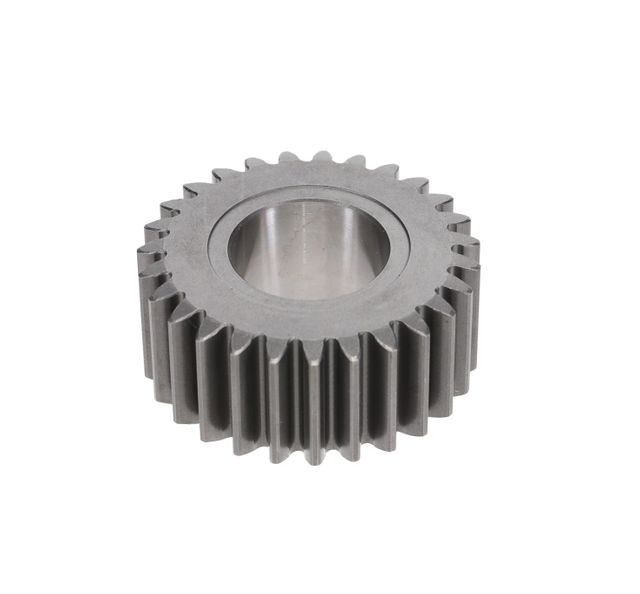

Newage Planetary Gear

The Newage Planetary Gear (OEM 220-0080) is a replacement drivetrain component used within the planetary carrier assembly of compatible Newage axles. The gear meshes with the sun gear and annulus to transmit drive through the planetary final drive, providing the reduction and torque multiplication required at the axle.

Designed for demanding off-highway applications, the planetary gear is manufactured to withstand high loads, repeated torque cycles and the operating conditions found within heavy-duty axle assemblies. Replacing a worn or damaged planet gear helps maintain correct gear engagement, reduce excessive play and support reliable power transmission through the final drive.

FUNCTION AND OPERATION

• Forms part of the planetary final drive assembly
• Transfers drive between the sun gear and annulus
• Contributes to the axle's final drive reduction
• Provides increased torque at the driven wheel
• Rotates around the planet pin within the planetary carrier
• Works with the needle bearing and thrust washers for controlled movement
• Helps maintain smooth and efficient power transmission

TECHNICAL DETAILS

• OEM Part Number: 220-0080
• Brand: Newage
• Type: Planet gear / planetary gear
• Bore: 27 mm
• Outside Diameter: 61 mm
• Thickness: 27 mm
• Function: Planetary final drive power transmission
• Quantity: 3 per axle
• Associated Components: Planet pin, needle bearing, thrust washers, sun gear and annulus

TYPICAL APPLICATIONS

Suitable for compatible Newage planetary axle assemblies used in:

• Construction equipment
• Dumpers
• Off-highway vehicles
• Industrial vehicles
• Agricultural machinery
• Heavy-duty axle applications
• Mecalac, Terex and Benford equipment fitted with compatible Newage axles

Always verify compatibility using the axle model, specification and OEM part number before ordering, as planetary assemblies and gear configurations can vary between axle versions.

IMPORTANT INFORMATION

Planet gears are subject to high loads and continuous meshing with the associated sun gear and annulus. Excessive wear can result in increased radial play, damaged gear teeth and deterioration of the associated planet pin and needle bearing. When servicing a planetary assembly, inspect all mating gears and supporting components for wear or damage.

Newage recommends replacing all three planet gears and their associated bearings when servicing a planetary set. Ensure the planet gears rotate freely on their pins without excessive radial movement and that the assembly is correctly lubricated before returning the axle to service.
