Bolt

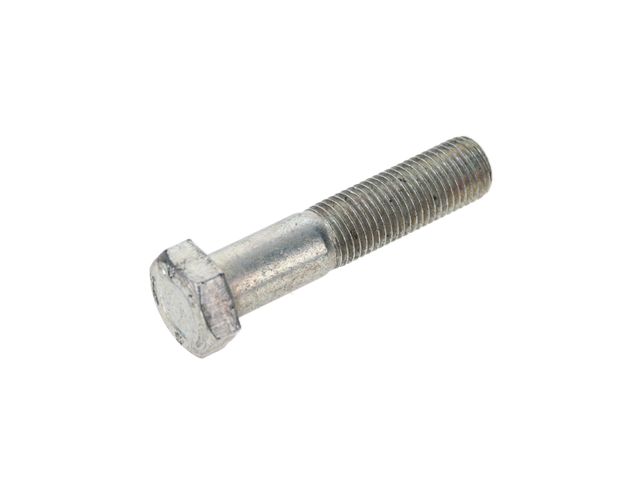

The Terex Bolt 3/8 UNF x 1.3/4 (OEM 57-7) is a replacement fastening bolt designed for compatible Terex and Benford site dumpers. It provides a secure threaded connection for components within the machine's mechanical assemblies, with its 3/8-inch UNF thread and 1.3/4-inch length suited to the original fastening arrangement.

Manufactured for the demanding conditions of construction and site equipment, the bolt provides dependable mechanical retention where vibration and repeated machine movement are present. It is used within the handbrake and linkage assembly of compatible Terex 5, 6 and 7 tonne dumpers, where it works with the associated washer and nut to secure the linkage components.

FUNCTION AND OPERATION

• Provides secure threaded fastening within the handbrake and linkage assembly.
• Works with the associated washer and nut to retain linked components.
• Maintains the correct position of the mechanical linkage during operation.
• Provides reliable fastening in an application exposed to machine vibration.
• Replaces a worn, damaged or missing original bolt.

TECHNICAL DETAILS

• Brand: Terex / Benford
• OEM Number: 57-7
• Part Type: Hexagonal-head bolt
• Thread: 3/8 UNF
• Length: 1.3/4 inch (approximately 44.5 mm)
• Application: Handbrake and linkage assembly
• Quantity: 1

TYPICAL APPLICATIONS

• Terex site dumpers
• Benford site dumpers
• Terex 5, 6 and 7 tonne dumpers
• PT9000 dumper
• Handbrake and mechanical linkage assemblies

IMPORTANT INFORMATION

Correct fastener size is important within mechanical control and brake linkage assemblies. The 57-7 bolt should be used with the specified associated hardware to ensure the linkage remains securely assembled and operates correctly.

Always check the OEM number, thread specification and required length against the machine parts information before ordering. The 57-7 is specifically identified as a 3/8 UNF x 1.3/4-inch bolt and should not be substituted with a similar-looking fastener of a different thread or length.
