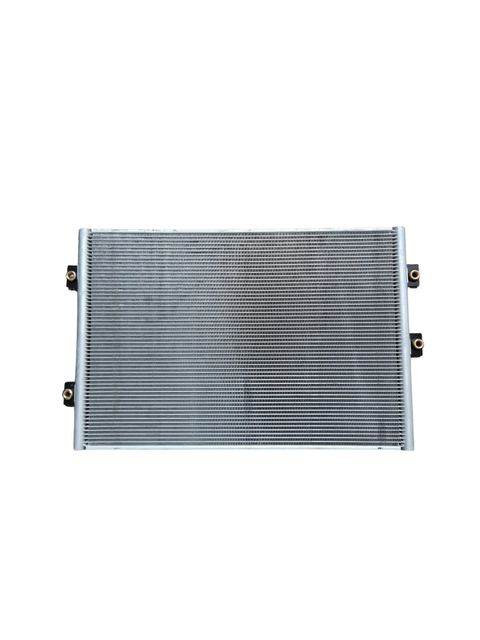

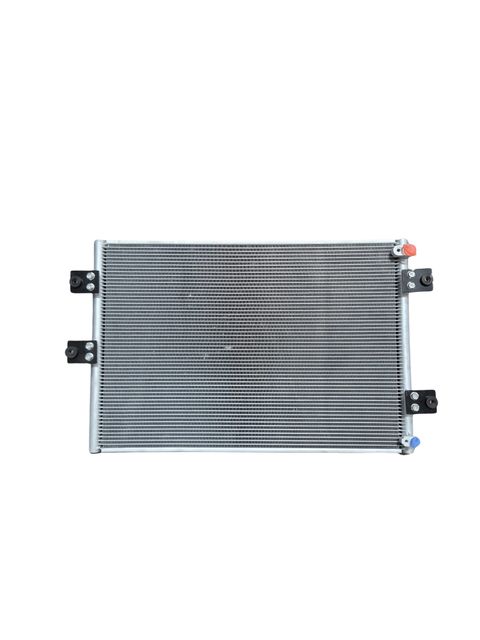

Caterpillar Condenser - OEM Number: 2358880

The Caterpillar Condenser (OEM 2358880) is a genuine replacement air conditioning condenser assembly designed for selected Caterpillar heavy-duty equipment. The condenser forms a key part of the machine's HVAC system, transferring heat from the pressurised refrigerant to the surrounding air so that the air conditioning system can provide effective cooling to the operator's cab.

Manufactured from aluminium with heavy-gauge mounting brackets, the condenser is designed to provide efficient heat exchange while resisting movement and vibration during machine operation. The assembly features female connections, M6 x 1 mounting threads and an eight-bolt mounting arrangement.

FUNCTION AND OPERATION

• Removes heat from the air conditioning refrigerant
• Helps provide effective cooling within the operator's cab
• Supports efficient HVAC system operation
• Provides a large surface area for heat transfer
• Heavy-duty mounting helps resist vibration and movement
• Designed for demanding construction and plant applications

TECHNICAL DETAILS

• OEM Part Number: 2358880 / 235-8880
• Type: A/C condenser assembly
• Function: Refrigerant heat exchange
• Material: Aluminium
• Mounting Thread: M6 x 1
• Mounting: 8-bolt
• Fitting 1: Female
• Fitting 2: Female
• Overall Length: 22.6 inches
• Overall Width: 14.7 inches
• Overall Height: 1.4 inches
• Application: Selected Caterpillar heavy-duty equipment
• Size: 565 x 370 mm

TYPICAL APPLICATIONS

Suitable for selected Caterpillar equipment, including:

• 307D, 307E and 308E excavators
• 312D, 312D2 and 312F excavators
• M313D and M314F wheeled excavators
• M315D, M315D2 and M315F
• M316D, M316F and M317D2
• M318D and M318F
• M320D2 and M320F
• M322D, M322D2 and M322F
• M323F and M324D2
• MH3022, MH3024 and MH3026 material handlers
• CB-536D vibratory compactor
• Other compatible Caterpillar machines

Always verify compatibility using the machine model, serial number, and OEM part number before ordering, as HVAC components can vary between machine configurations and production revisions.

IMPORTANT INFORMATION

The condenser is part of a pressurised air conditioning system and should only be removed or replaced by a suitably qualified technician using the correct refrigerant recovery and charging equipment.

Caterpillar recommends replacing the condenser and drier when there has been a major compressor failure, as simply flushing the system may not completely remove debris from the condenser coils.

Inspect the condenser for blocked fins, corrosion, physical damage, refrigerant leakage, or damaged mounting brackets. Keeping the condenser fins clean and unobstructed is important for maintaining effective heat transfer and air conditioning performance.
