Pin - JCB
Manufactured for the demanding conditions associated with heavy plant equipment, the pin is designed to withstand repeated loading, vibration, movement and exposure to dirt and moisture.
JCB Pin
Part No.
HMP4201

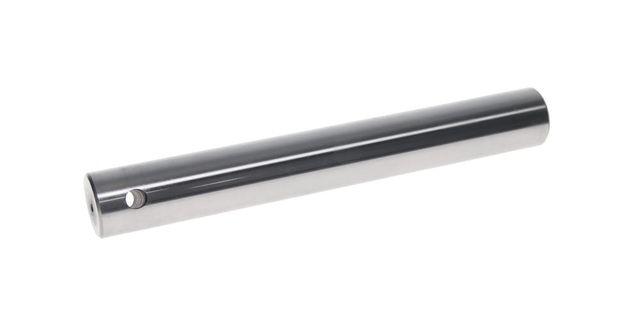

The JCB Pin (OEM 811/50525) is a replacement locating and retaining pin designed for use on compatible JCB construction and agricultural machinery. It provides a secure connection between mechanical components, maintaining their correct position and alignment while allowing controlled movement where the particular assembly requires it.
Manufactured for the demanding conditions associated with heavy plant equipment, the pin is designed to withstand repeated loading, vibration, movement and exposure to dirt and moisture. Replacing a worn, bent or damaged pin helps restore the correct fit and operation of the associated assembly while reducing unnecessary wear on surrounding components.
FUNCTION AND OPERATION
- Locates and retains associated mechanical components
- Maintains correct alignment within the assembly
- Provides a secure pivot or retaining point where required
- Withstands repeated loading and machine vibration
- Helps minimise unwanted component movement
- Restores correct operation of the associated mechanism
TECHNICAL DETAILS
- OEM Part Number: 811/50525
- Type: Machine pin / retaining pin
- Function: Component location, retention and pivoting
- Application: Selected JCB construction and agricultural equipment
- Design: OEM replacement component
- Length: 300mm
- Diameter: 40mm
- Lynch Pin Hole: 11mm
- Pin Hole to end of shaft: 271mm
TYPICAL APPLICATIONS
Suitable for compatible JCB machinery, including selected:
- Loadall telehandlers
- Backhoe loaders
- Excavators
- Agricultural machinery
- Construction equipment
- Other JCB machines using the compatible pin arrangement
Always verify compatibility using the machine model, serial number and OEM part number before ordering, as pin dimensions and applications can vary between machine models and production versions.
IMPORTANT INFORMATION
Inspect pins regularly for excessive wear, scoring, bending, corrosion or damage around the retaining area. Excessive wear can introduce unwanted movement or play into the assembly and may accelerate wear to associated bushes, mounting points and other components.
When replacing the pin, inspect the corresponding bush, bore, retaining hardware and surrounding components for signs of wear or damage. Ensure the replacement pin is correctly seated and securely retained before returning the machine to service.
| Pack quantity | 1 |
| Weight | 2.9 |
| Manufacturer | JCB |
