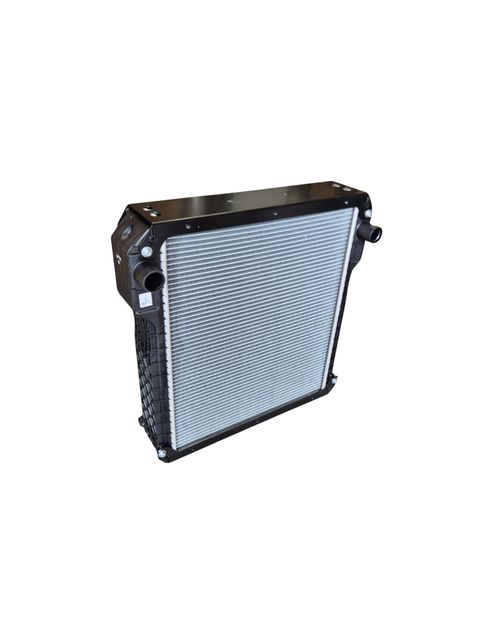

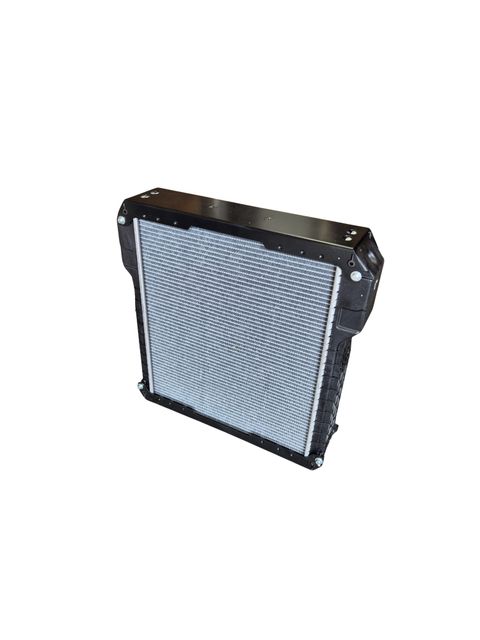

Radiator - JCB

The JCB 528-70 Radiator (Part Number 30/915200) is a replacement engine cooling radiator designed for the JCB 528-70 Loadall telehandler and other compatible JCB machines. It forms a key part of the engine cooling system, transferring heat from the engine coolant to the surrounding air to help maintain the correct operating temperature during demanding work.

Designed for the conditions encountered by construction and agricultural machinery, the radiator provides the cooling capacity required during prolonged operation under load. Replacing a damaged, blocked or leaking radiator helps restore effective coolant circulation and heat dissipation, reducing the risk of engine overheating and maintaining reliable machine performance.

FUNCTION AND OPERATION

• Transfers heat from the engine coolant to the surrounding air
• Helps maintain the engine at its correct operating temperature
• Supports reliable engine performance during prolonged operation
• Helps prevent overheating during demanding work
• Designed to work with the machine's cooling fan, hoses and coolant system
• Replacement for a damaged, corroded, blocked or leaking original radiator

TECHNICAL DETAILS

• Part Number: 30/915200
• Manufacturer: JCB
• Component: Engine cooling radiator
• Application: JCB 528-70 Loadall
• Core construction: Aluminium
• Core rows: 4
• Approximate core height: 505 mm
• Approximate core width: 616 mm
• Approximate core thickness: 100 mm
• Top and bottom hose connection outside diameter: approximately 44 mm
• Mounting width: approximately 625 mm

TYPICAL APPLICATIONS

• JCB 528-70 Loadall
• JCB 528S Loadall
• JCB 526 and 526S Loadalls
• JCB 520 and 506C Loadalls
• JCB 530 / 530S Loadalls
• JCB 214E backhoe loaders
• Other compatible JCB machines using Part Number 30/915200

IMPORTANT INFORMATION

Before installation, the cooling system should be thoroughly inspected and flushed where necessary. Check the radiator mounting points, hoses, fan, water pump and associated connections for wear or damage, as an underlying cooling-system fault can contribute to premature radiator failure.

Always confirm the machine model, serial number and existing radiator part number before ordering. Radiator dimensions and connections should also be checked against the original component to ensure correct fitment.
