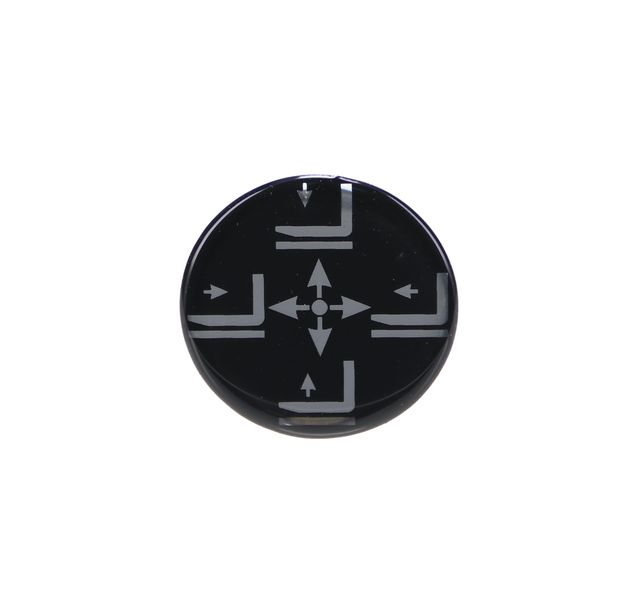

JCB Placing Pattern Decal (Main Lever) - OEM Number: 817/18587

The JCB Placing Pattern Decal (Main Lever) (OEM 817/18587) is a replacement operating-pattern decal fitted to the main control lever of compatible JCB Loadall telescopic handlers. It provides a clear visual guide showing the control movements associated with the placing pattern, helping the operator identify the correct lever direction for the required boom and carriage functions.

Positioned at the main lever control area, the decal provides an important reference during machine operation and helps maintain the correct control information when the original has become worn, faded or damaged. It is suitable for a range of JCB telescopic handlers, including selected 509, 531, 533, 535, 536, 540, 541, 550 and 560 models.

FUNCTION AND OPERATION

• Displays the main lever placing-pattern operating instructions.
• Shows the direction of lever movement for the relevant machine functions.
• Provides an immediate visual reference for the operator.
• Helps maintain clear and consistent control information in the cab.
• Replaces a worn, damaged, faded or missing original decal.

TECHNICAL DETAILS

• Brand: JCB
• OEM Number: 817/18587
• Part Type: Operating pattern decal
• Description: Placing pattern – main lever
• Application: JCB Loadall telescopic handlers
• Position: Main control lever
• Diameter: 35 mm

TYPICAL APPLICATIONS

• JCB 509 Loadall
• JCB 531-70
• JCB 533-105
• JCB 535-95 / 535-125 / 535-140
• JCB 536-70
• JCB 540-140 / 540-170 / 540-180 / 540-200
• JCB 540V140
• JCB 541-70
• JCB 550-80 / 550-140 / 550-170
• JCB 560-80
• Other compatible JCB Loadall telescopic handlers using the same placing-pattern decal.

IMPORTANT INFORMATION

The placing pattern decal is part of the operator's control information and should remain clearly visible and legible during machine operation. Always check the OEM number and machine model or serial number before ordering to ensure the correct control-pattern decal is selected.
