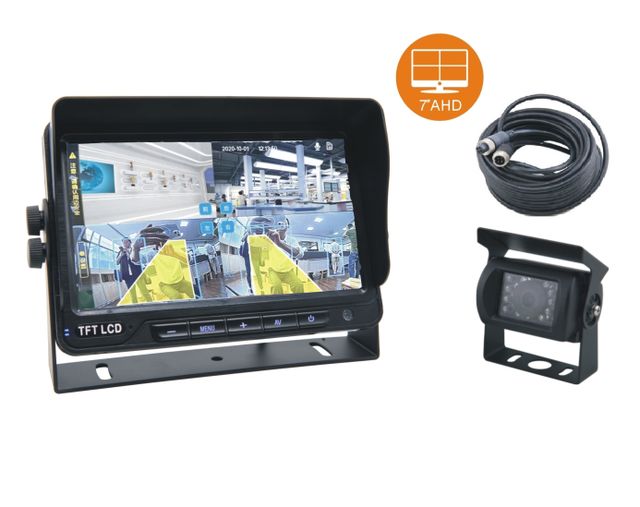

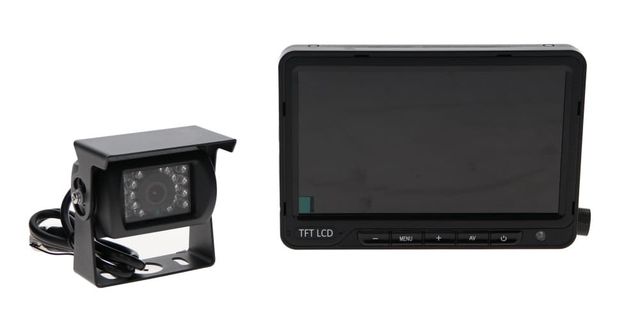

7" Colour Camera Kit with AI Human detection to alert operator of persons within the danger zone
AI monitor with AHD camera system:
- Video input: 4 videos, 1 audio
- Supplied with one camera - for additional cameras use HEL1165
- For additional cables use HEL3137 for 3mtr option or HEL1166 for 10mtr
- Screen Type: LCD TFT
- Screen size: 7" (16:9)
- Resolution: 1024 (H)RGB600 (V)
- Screen backlight: LED
- Brightness: 450cd/m2
- Contrast: 500:1
- Visible range: 154.08(W) * 85.92(H)mm
- Working voltage: DC12-24V
- Signal interface: AV1/ AV2/AV3/AV4
- System: 4QUAD AHD 720P / PAL
- SD card: Support Max. 128G
- Maximum distance for blind area alarm: 6M
- Operation way: Keypad/ IR
- Working temperature: -20℃~70
- Storage temperature: -30℃ ~80℃
- Power: 12W
- Camera IP rating: IP69K
- Camera type: 1/3 CMOS
- Volts: 12V
- Audio function: Yes
- Resolution: PAL:733(H) X 493(V)
- NTSC:733(H) X493(V)
- Night vision: 10m
- Viewing angle camera: 120°
- Working temperature: -20℃ ~ +70

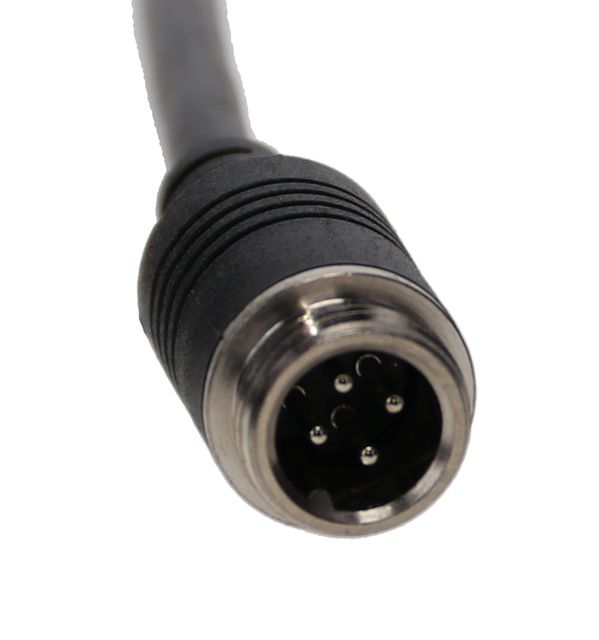

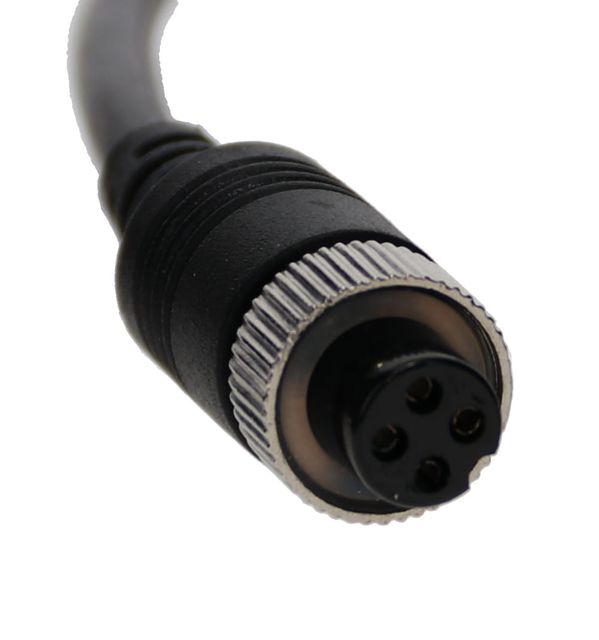

- 15M 4PIN extended cable
