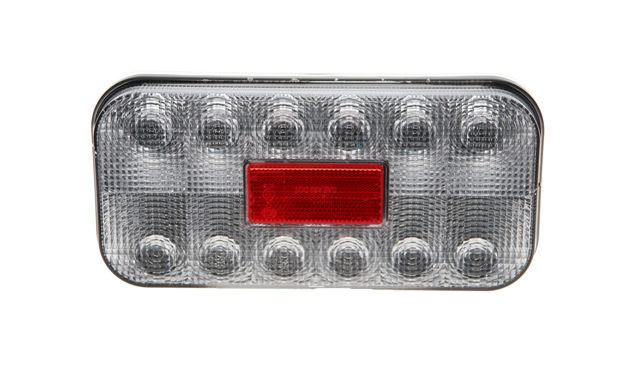

Rear Lamp Assembly Combination - Hella OEM: 2Va 011.900-031

The Hella Rear Lamp Assembly Combination (OEM 2VA 011 900-031) is a 24V LED combination rear lamp that brings the tail light, stop light, direction indicator and rear reflector together in a single compact unit. It is designed for horizontal bolt-on mounting and can be fitted on either the left- or right-hand side of the vehicle or machine.

The lamp uses 12 LEDs behind a crystal clear lens, set in a black synthetic housing. With an IP6K9K protection rating, it is sealed against dust and high-pressure water. It is built for the vibration, impacts and harsh conditions found on commercial vehicles, agricultural machinery and heavy construction plant. LED technology gives a long service life with no bulbs to replace.

FUNCTION AND OPERATION

• Combines four lighting functions in one lamp: tail light, stop light, indicator and reflector.
• LED light sources provide fast, bright signalling and long service life.
• Eliminates the need to carry and replace bulbs.
• Impact-resistant lens and sealed housing withstand demanding operating conditions.
• Universal design allows fitting on either the left- or right-hand side.
• Round plug connection allows straightforward installation and replacement.

TECHNICAL DETAILS

• Brand: Hella
• OEM Number: 2VA 011 900-031
• Part Type: LED combination rear lamp
• Voltage: 24V
• Light Functions: Tail, stop, indicator and reflector
• Number of LEDs: 12
• Lens Colour: Crystal clear
• Housing: Black synthetic
• Dimensions: 235mm x 115mm x 47mm
• Mounting: Bolt-on, horizontal
• Fitting Position: Left or right
• Connection: Round plug
• Protection Rating: IP6K9K
• Approvals: ECE, SAE, ADR/GGVS
• Also Replaces: Hydrema 7401157

TYPICAL APPLICATIONS

• Construction plant and machinery
• Agricultural vehicles and machinery
• Commercial vehicles and trailers
• Compatible equipment using OEM 2VA 011 900-031

IMPORTANT INFORMATION

This lamp is the 24V version. A 12V version is available under OEM number 2VA 011 900-011, so check the vehicle or machine’s electrical system voltage before ordering. The lamp does not include indicator failure control, so make sure it is compatible with the vehicle’s indicator circuit.

Always check the OEM number and machine model before ordering to ensure the correct rear lamp is selected.
