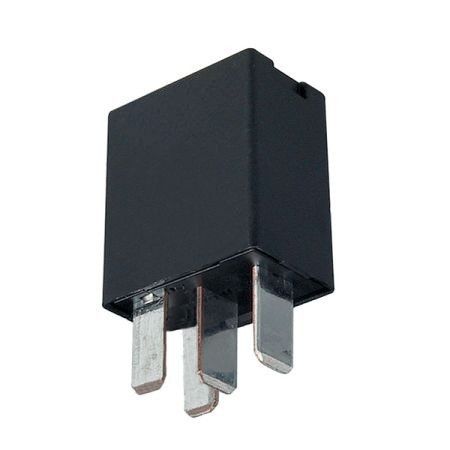

Relay 24V Micro Make/Break 10A

The 24V Micro Make/Break Relay 10A with Diode is a compact electrical switching relay designed for controlling circuits in 24V vehicle, plant and industrial electrical systems. Its make/break changeover arrangement allows a low-current control circuit to switch a separate electrical load, providing a practical solution for a wide range of machine and automotive applications.

The integrated suppression diode helps protect the relay's controlling electronics from the voltage spike generated when the relay coil is switched off. With a compact micro-relay format and a 10A switching capacity on the make contact, it is well suited to applications where reliable electrical switching is required while installation space is limited.

FUNCTION AND OPERATION

• Operates from a 24V DC control circuit.
• Provides make/break changeover switching between electrical circuits.
• Allows a relatively low-current control signal to operate a separate load.
• Integrated diode suppresses inductive voltage spikes when the relay coil is de-energised.
• Compact design is suitable for installations where space is restricted.
• Provides reliable switching for vehicle, plant and industrial electrical systems.

TECHNICAL DETAILS

• Part Type: Micro make/break relay
• Operating Voltage: 24V DC
• Switching Capacity: Up to 10A on make contact
• Configuration: Changeover / make-break
• Protection: Integrated suppression diode
• Design: Compact micro relay

TYPICAL APPLICATIONS

• Construction and plant machinery
• Commercial vehicles and transport equipment
• Agricultural machinery
• Industrial control systems
• 24V electrical control circuits
• General automotive electrical applications

IMPORTANT INFORMATION

Relays incorporating a suppression diode are polarity-sensitive, so the coil connections must be wired correctly for the diode to operate safely. Always check the relay terminal arrangement and the machine's wiring diagram before installation.

Ensure the relay's 24V operating voltage and contact rating are suitable for the circuit being controlled. Where the relay is replacing an existing component, compare the terminal configuration and switching arrangement before fitting.
