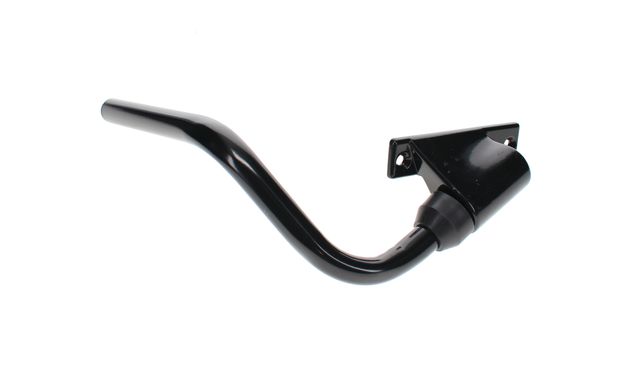

The Merlo Mirror Arm (OEM 32888) is a replacement support arm designed to mount and position the external mirror on compatible Merlo telescopic handlers. It provides the connection between the machine's mounting point and mirror head, allowing the mirror to be positioned correctly to give the operator improved visibility around the machine.

Designed for the demanding environment of construction, agricultural and material-handling equipment, the arm provides a robust mounting arrangement capable of withstanding vibration and regular adjustment. The 32888 reference is associated with the left-hand mirror arm arrangement and is used on selected Merlo telescopic machines.

FUNCTION AND OPERATION

Supports and positions the external mirror
Connects the mirror head to the machine mounting point
Helps provide the operator with improved rearward and side visibility
Allows adjustment of the mirror position to suit the operator
Provides a replacement for a bent, damaged or deteriorated original arm

TECHNICAL DETAILS

Type: Mirror mounting arm
Merlo OEM number: 32888
Alternative reference: 032888 / M032888
Position: Left-hand
Arm diameter: 20 mm
Length: Approximately 260–290 mm, depending on measurement point
Mounting Plate: 117 x 28 mm
Mounting: Two fixing points
Bolt Hole Centres: 100 mm
Application: External mirror assembly

TYPICAL APPLICATIONS

Merlo telescopic handlers
Merlo P28.7 EVT
Selected Merlo agricultural and material-handling machines
Compatible Merlo cabin mirror assemblies

IMPORTANT INFORMATION

The mirror arm is supplied as the supporting arm rather than the mirror head itself. When replacing the arm, inspect the mirror head, mounting points and associated fixing hardware for damage or excessive wear, particularly if the original arm has been bent through impact.

Always check the machine model and serial number before ordering to confirm compatibility, as Merlo uses different mirror arms and mounting arrangements across its telescopic handler ranges. The OEM number 32888 should be matched against the existing component or machine parts information before fitting.

Pack quantity	1
Weight	0.56
OEM Number	32888
Manufacturer	Merlo
