Hamm HD12 Complete Dashboard (Kubota Engine) - OEM Number: 2314751

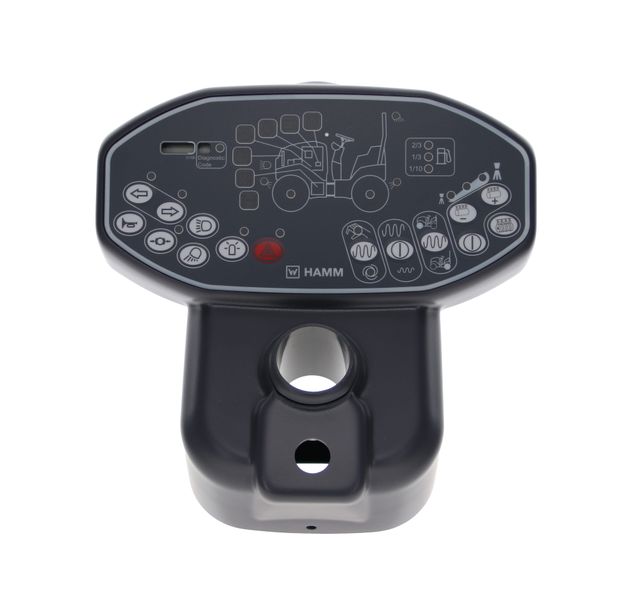

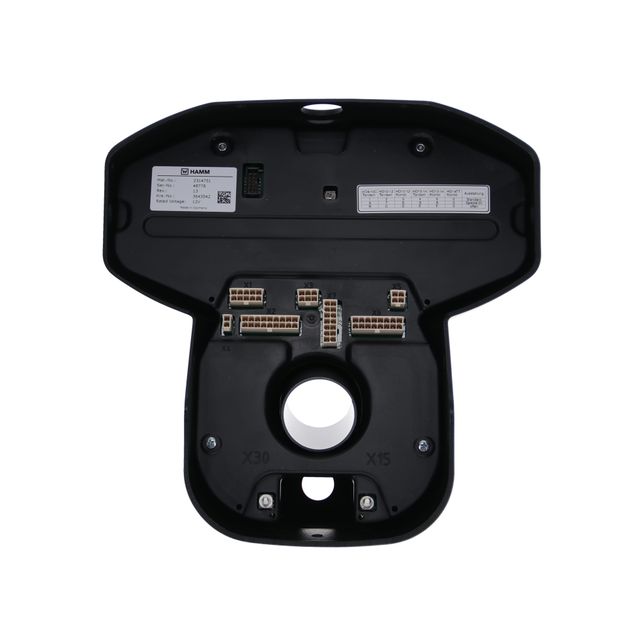

The Hamm HD12 Complete Dashboard (OEM 2314751) is a genuine replacement instrument panel assembly designed for use on selected Hamm tandem rollers equipped with Kubota diesel engines. Supplied as a complete unit with integrated switches and controls, the dashboard provides the operator with essential machine information, operating controls, warning indicators, and system monitoring functions required for the safe and efficient operation of the roller. Genuine Hamm parts documentation identifies OEM 2314751 as the complete dashboard assembly for Kubota-engined models.

Manufactured to OEM specifications, the dashboard is engineered to withstand the harsh conditions encountered in road construction and compaction applications. Its robust construction offers excellent resistance to vibration, dust, moisture, and temperature extremes, ensuring reliable operation throughout the machine's service life.

FUNCTION AND OPERATION

• Displays essential machine operating information
• Houses the operator switches and control functions
• Provides visual warning and status indicators
• Supports safe and efficient machine operation
• Designed for reliable performance in demanding site conditions
• Supplied as a complete OEM dashboard assembly
• Comes complete with all switches

TECHNICAL DETAILS

• OEM Part Number: 2314751
• Type: Complete dashboard / instrument panel assembly
• Function: Machine monitoring and operator control
• Application: Hamm tandem rollers with Kubota engines
• Construction: Heavy-duty enclosed dashboard assembly
• Design: Genuine OEM direct replacement component
• Features: Supplied complete with switches and integrated controls

TYPICAL APPLICATIONS

Suitable for selected Hamm tandem rollers, including:

• Hamm HD10-12 (H200)
• Hamm HD10-12 (H230)
• Hamm HD10-12 (H262)
• Hamm HD13-14 (H201)
• Hamm HD30-35 (H247)
• Hamm HD50 (H290)
• Hamm HD50 (H295)

This dashboard is specifically designed for Kubota engine variants. A different dashboard assembly is used on equivalent models fitted with Hatz engines, so compatibility should always be verified before ordering.

IMPORTANT INFORMATION

Always confirm the correct OEM part number, machine model, engine type, and serial number before ordering, as Hamm uses different dashboard assemblies depending on the engine specification and machine generation. Although externally similar, dashboards for Kubota- and Hatz-powered rollers are not interchangeable.

A damaged or faulty dashboard can result in inaccurate machine monitoring, inoperative switches, warning light failures, or loss of operator control functions. When replacing the dashboard, it is recommended to inspect the wiring harness, electrical connectors, fuses, mounting hardware, and associated sensors to ensure correct operation. Where applicable, verify whether the replacement dashboard requires programming or configuration before installation, as some Hamm electronic instrument panels require machine-specific setup procedures.
