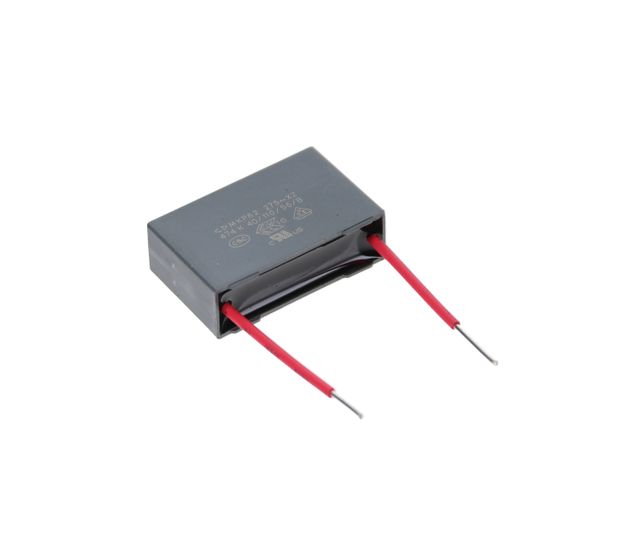

The Belle Polyester Condenser (OEM 244/99521) is a replacement electrical component designed for the Belle Megavib+ electric vibrating poker power unit. The condenser forms part of the motor's electrical circuit, helping provide the correct electrical characteristics for reliable operation of the power unit.

The component is a 470 nF, 275 V polyester condenser with a ±10% tolerance, designed specifically for the electrical arrangement of the Megavib+ power unit. Replacing a failed or deteriorated condenser can help restore correct motor operation where electrical starting or running faults are traced to the original component. Belle parts information lists 244/99521 as a polyester condenser, 470 nF / 275 V, with a 10% tolerance.

FUNCTION AND OPERATION

Forms part of the Belle Megavib+ motor electrical circuit.
Provides the required capacitance for the power unit's electrical system.
Helps maintain correct electrical operation of the motor.
Designed for use within the Megavib+ drive unit assembly.
Provides a direct replacement for a failed or deteriorated original condenser.

TECHNICAL DETAILS

Brand: Belle
OEM Number: 244/99521
Part Type: Polyester condenser
Capacitance: 470 nF
Voltage Rating: 275 V
Tolerance: ±10%
Application: Belle Megavib+ electric vibrating poker
Quantity: 1

TYPICAL APPLICATIONS

Belle Megavib+ electric vibrating pokers
Megavib+ drive unit assemblies
Concrete vibrating equipment
Electrical motor control circuits
Construction and concrete consolidation applications

IMPORTANT INFORMATION

The condenser is an electrical component within the Megavib+ drive unit and should be replaced if testing identifies it as faulty or if the original component has deteriorated. Electrical faults should be diagnosed before replacement, as similar symptoms can be caused by wiring, switch, brush or motor-related problems.

Always check the OEM number and machine model before ordering to ensure the correct condenser is selected. The component is supplied individually and is listed as quantity one in the Megavib+ parts breakdown.

Pack quantity	1
Weight	0.02
OEM Number	244/99521
Manufacturer	Belle
