K1 Semi-Rotary Hand Pumps
The K1 semi-rotary hand pumps is well recognised across many industries as an effective, easy to maintain and cost efficiant way to pump fluids of all types.
Designed to deliver a compact and easy to install hand pump solution, the K1 original semi-rotary hand transfer pump is one of our best selling products.
The original "K" semi rotary pump made from iron with internal parts of brass, steel shafts, and soft graphite seals.
- Suitable with diesel, light oils & water.
- Semi rotary, double acting.
- Cast iron body with brass internals.
- Flanged inline threaded ports.
- ¾” K1 pumping speed up to 17.25 litres per minute
- Replacement handle us HOL0085
- Note: Never mount horizontally.

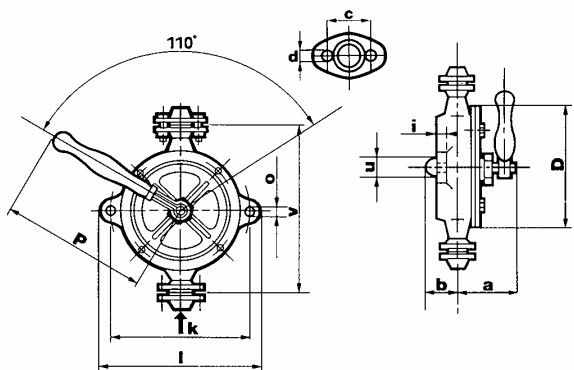

Dimensions:
- D: 150mm
- a: 140mm
- b: 55mm
- c: 65mm
- d: 9.5mm
- i: 10mm
- k: 150mm
- l: 180mm
- o: 13mm
- p: 300mm
- u: 25mm
- v: 205mm
