Knott Avonride Brake Shoe Kit - OEM Number: 409930.001

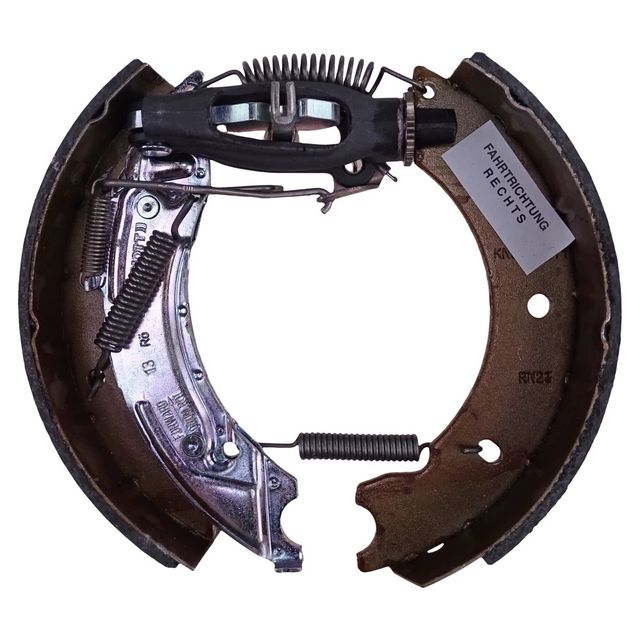

The Knott Avonride Brake Shoe Kit (OEM 409930.001) is a genuine replacement brake shoe assembly designed for use on Knott and Knott Avonride trailer braking systems equipped with 20-2425/1 automatic adjustment (ANS) wheel brakes. The kit provides a complete axle set of brake shoes and associated hardware, restoring safe, consistent, and reliable braking performance for commercial trailers, plant trailers, caravans, and agricultural equipment.

Manufactured to OEM specifications, this brake shoe kit is engineered with high-quality friction material and precision-machined components to deliver dependable stopping power, long service life, and smooth operation under demanding towing conditions. The integrated automatic adjustment system continuously compensates for brake lining wear, reducing maintenance requirements while maintaining optimum braking efficiency.

FUNCTION AND OPERATION

• Provides reliable braking performance for Knott trailer axles
• Automatically compensates for brake lining wear via the ANS system
• Delivers balanced braking force across both wheels of a single axle
• Reduces maintenance by eliminating routine manual brake adjustment
• Supports safe towing and consistent overrun brake operation
• Designed for commercial, plant, caravan, and utility trailer applications

TECHNICAL DETAILS

• OEM Part Number: 409930.001
• Type: Brake shoe kit / brake lining set
• Brake Type: Knott 20-2425/1
• Brake Size: 200mm × 50mm
• Adjustment System: Automatic (ANS – Auto Readjustment)
• Function: Mechanical overrun trailer braking
• Application: Single axle brake service kit
• Construction: High-performance friction linings with heavy-duty steel shoes

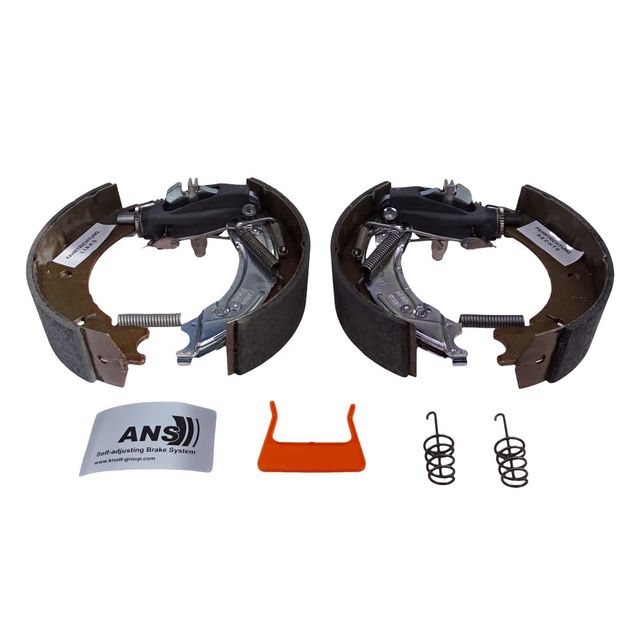

The genuine Knott kit is supplied as a complete set for one axle, including:

• 4 brake shoes

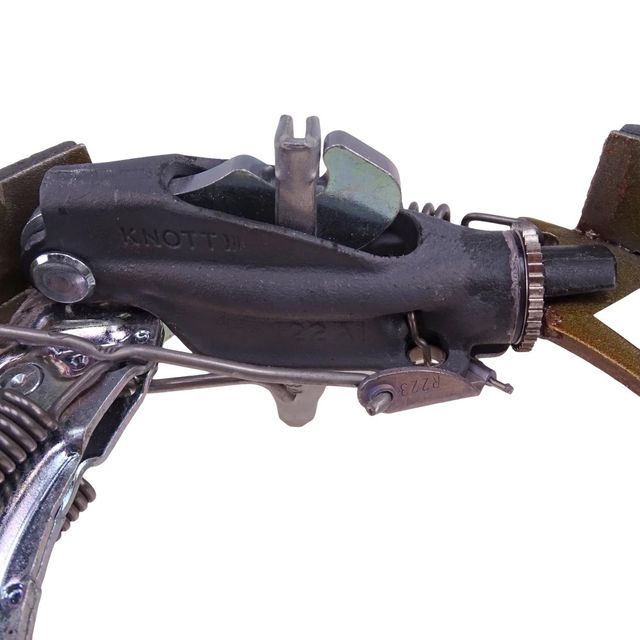

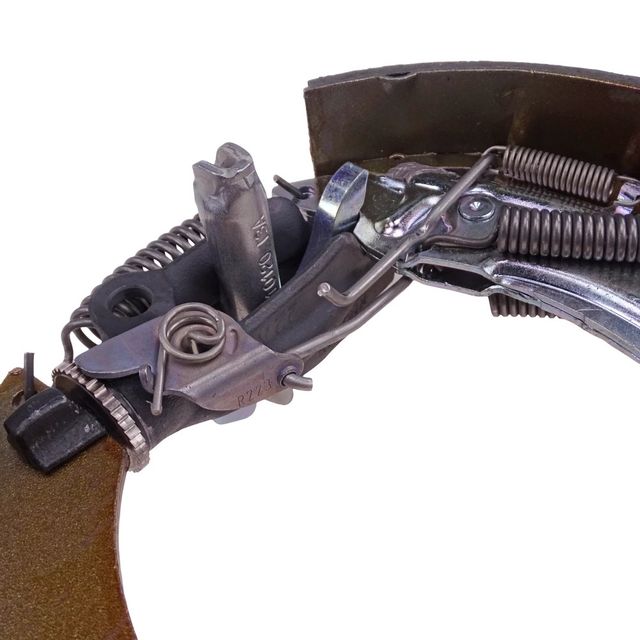

• Automatic adjustment mechanism
• Springs and retaining hardware
• Spreader lock and reverse mechanism components (where applicable)

TYPICAL APPLICATIONS

Suitable for a wide range of trailers fitted with Knott 20-2425/1 braking systems, including:

• Plant trailers
• Car transporters
• Commercial trailers
• Utility trailers
• Caravan chassis
• Agricultural trailers

OEM 409930.001 is specifically designed for 200 × 50mm Knott wheel brakes with automatic adjustment, making it suitable for numerous trailer manufacturers using Knott running gear.

IMPORTANT INFORMATION

Always confirm the correct OEM part number, wheel brake type, and brake dimensions before ordering, as Knott produces several brake shoe configurations including 160×35, 203×40, 200×50, 250×40, and 300×60 variants that are not interchangeable. When replacing brake shoes, it is recommended to inspect the brake drums, adjusters, springs, cables, and wheel bearings for wear to ensure optimum braking performance and long-term reliability. Community maintenance discussions also commonly advise measuring the drum diameter and shoe width rather than relying solely on trailer model, as different production years may be fitted with different Knott axle specifications.
