Clvis

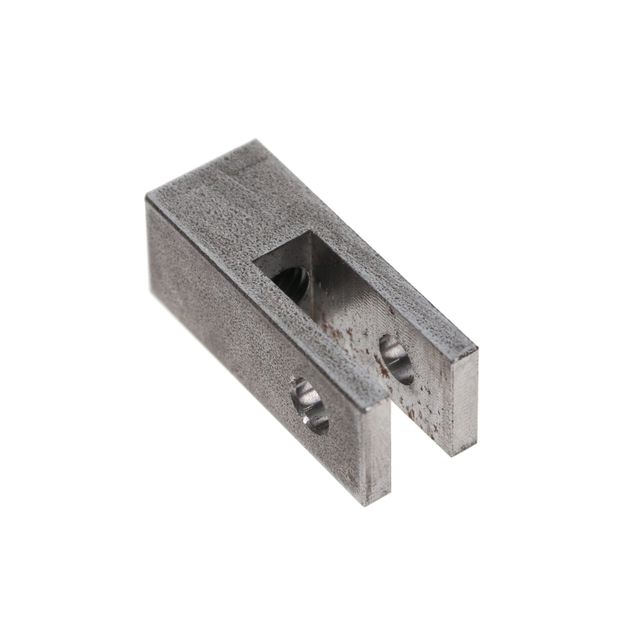

The Mecalac Clevis (OEM 1533-225) is a replacement fork-style clevis used within the linkage and braking assemblies of compatible Mecalac, Terex and Benford site dumpers. It provides a secure mechanical connection between linked components, allowing the associated linkage to pivot while maintaining positive attachment.

Designed for the demanding conditions of site dumper operation, the clevis works with the appropriate pin, washers, nut and retaining hardware to form a secure articulated connection. It is listed as a fork within the handbrake and linkage assembly of compatible Terex 5, 6 and 7 tonne dumpers, making it an important component where reliable mechanical movement and retention are required.

FUNCTION AND OPERATION

• Provides a forked connection between components within a mechanical linkage.
• Allows connected components to pivot relative to one another during operation.
• Works with a clevis pin and associated retaining hardware.
• Helps maintain secure and correctly aligned linkage movement.
• Replaces a worn, damaged or missing original clevis.

TECHNICAL DETAILS

• Brand: Mecalac / Terex / Benford
• OEM Number: 1533-225
• Part Type: Clevis / fork
• Application: Site dumpers
• Assembly: Handbrake and linkage
• Quantity: 1

TYPICAL APPLICATIONS

• Mecalac site dumpers
• Terex site dumpers
• Benford dumpers
• PT9000 dumper
• Handbrake and mechanical linkage assemblies
• Compatible brake and control linkages

IMPORTANT INFORMATION

The clevis forms part of a mechanical linkage and relies on the correct pin, washers, nut and retaining arrangement to remain securely assembled. Any excessive wear in the clevis or its associated pin can introduce unwanted movement into the linkage and should be addressed during servicing.

Always check the OEM number and machine model before ordering to ensure the correct clevis is selected. The 1533-225 component is listed as a fork within the applicable handbrake and linkage assembly and is supplied as an individual component.
