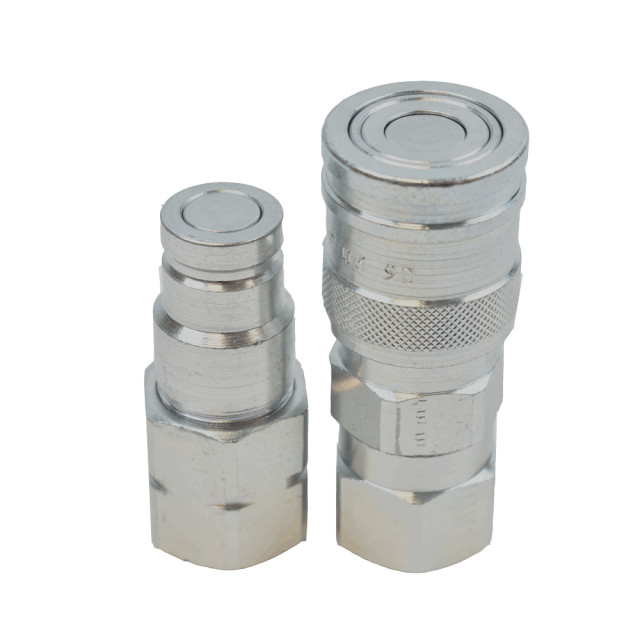

JCB Style Beaver Pack Hydraulic Flat Faced Coupling Set OEM; 929/06202 & 929/06303

hos4023
Part No. HOS4023
£30.72 Exc. VAT
£36.86 Inc. VAT
check In stock
Order before 4.00pm for next day delivery.
Remember...

TECHNICAL FEATURES AND OPTIONS

  • Operating pressure: up to 420 bar
  • Temperature: -20°C to + 100°C
  • Sealing description: Nitrile NBR
  • Material: High strength carbon steel
  • Locking mechanism: Locking ball and safety lock
  • Valving style: Flat face
  • Connection system: Push
  • Flow Rate: up to 750 L/Min
  • OEM; 929/06202 & 929/06303

BENEFITS

  • Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit
  • Minimal fluid spillage during disconnection, reducing fluid spillage to the environment
  • Minimal air inclusion during connection
  • Internal valve design creates minimal pressure drop, maintaing circuit efficiency in the system
  • The modular design allows flexibility with a wide range of configurations
  • Good resistance to pressure impulses
Pack quantity 1
Type Coupling Set
Size 1/2"

This product is shown in:

Tool > Breaking & Cutting > Hydraulic Power Packs & Breakers > JCB Beaver Pack Parts

Plant > Roller Parts > Benford Terex MBR71 Parts

JCB > JCB Style Couplings

JCB > 3Cx Backhoe Loader > JCB Style 3Cx Backhoe Loader Couplings

JCB > Excavator > JCB Style Excavator Couplings

JCB > Telehandler > JCB Style Telehandler Couplings

JCB > Wheeled Loader > JCB Style Wheeled Loader Couplings

JCB > Beaver Pack

JCB > Excavator > Excavator Accessories

JCB > Telehandler > Telehandler Accessories

JCB > Wheeled Loader > Wheeled Loader Accessories

JCB > Backhoe Loader > Backhoe Loader Accessories

MANULI > Hydraulic Couplings > Flat Faced High Pressure Couplings
