Honda GX200 Vsp Tapered Shaft

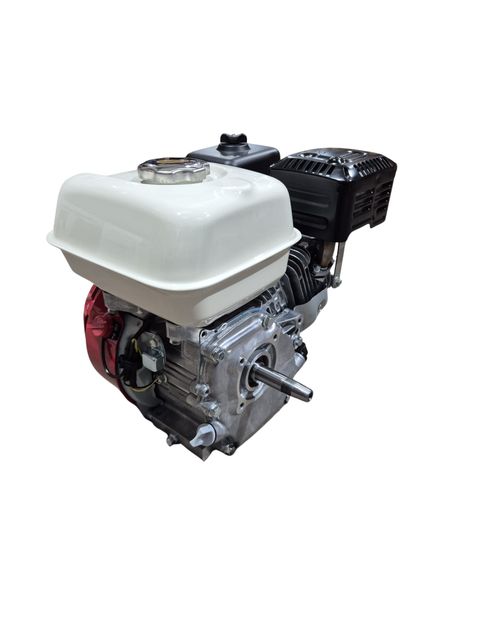

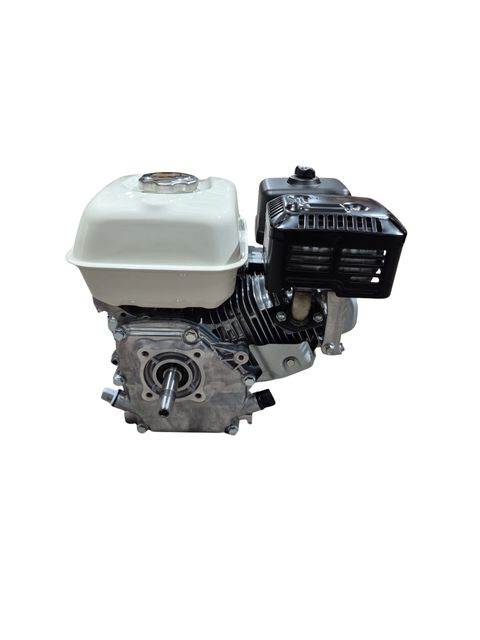

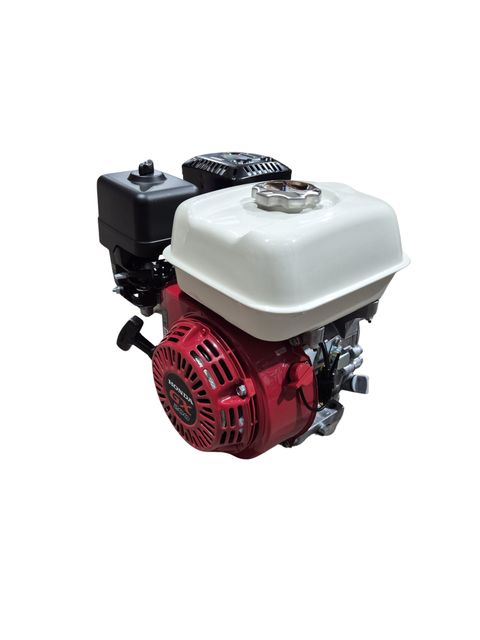

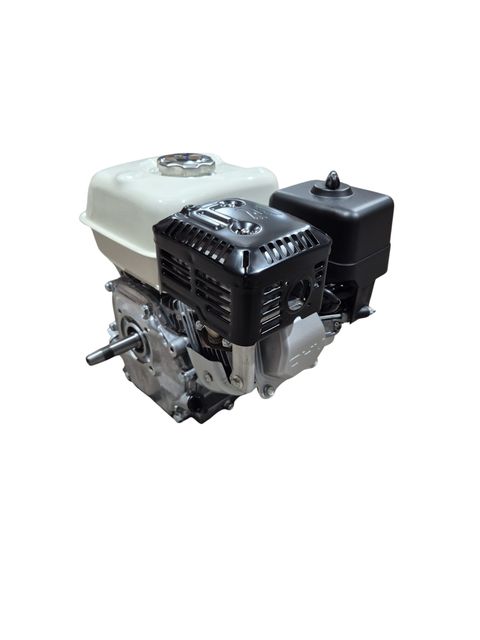

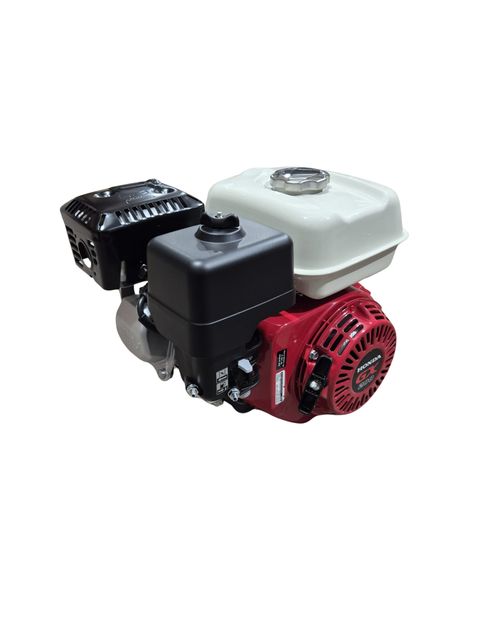

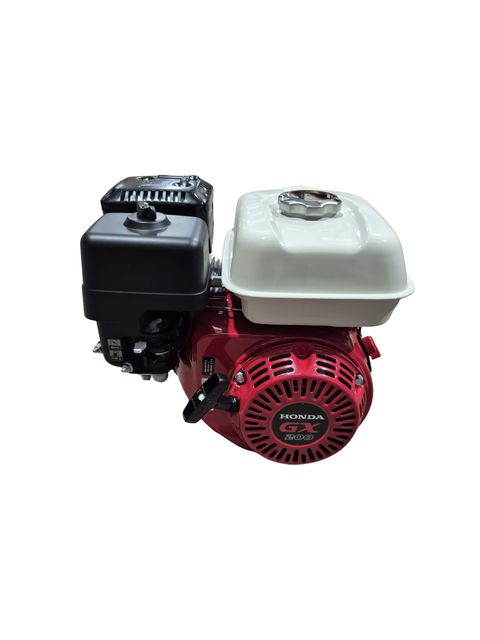

The Honda GX200 VSP Tapered Shaft Engine (OEM HEGX200VSP) is a reliable 196cc four-stroke petrol engine designed for demanding construction, industrial and equipment applications. It features Honda's proven GX-series OHV engine design, with a horizontal crankshaft and tapered PTO shaft, making it suitable for machinery requiring a tapered shaft drive connection.

This version is equipped with Honda Oil Alert protection and recoil starting, providing straightforward operation and added protection against low engine oil levels. With its cast-iron cylinder sleeve, low fuel and oil consumption, and robust construction, the GX200 VSP is well suited to compactors, pumps, generators, welders, tillers and other equipment requiring a dependable general-purpose petrol engine.

FUNCTION AND OPERATION

• Provides reliable petrol power for a wide range of construction and industrial machinery.
• Four-stroke OHV design provides efficient combustion and dependable operation.
• Horizontal crankshaft transfers engine power through the tapered PTO shaft.
• Oil Alert system helps protect the engine against low oil levels.
• Recoil starter provides simple manual starting.
• Suitable for continuous-duty equipment and general industrial applications.

TECHNICAL DETAILS

• Brand: Honda
• Engine Model: GX200 VSP
• OEM Number: HEGX200VSP
• Engine Type: 4-stroke, single-cylinder, OHV petrol engine
• Displacement: 196 cc
• Bore x Stroke: 68 x 54 mm
• Compression Ratio: 8.5:1
• Maximum Net Power: 4.3 kW (5.8 HP) at 3,600 rpm
• Continuous Rated Power: 3.3 kW (4.4 HP) at 3,000 rpm / 3.7 kW (5.0 HP) at 3,600 rpm
• Maximum Net Torque: 12.4 Nm at 2,500 rpm
• Starting System: Recoil
• PTO Shaft: Tapered
• Lubrication Protection: Oil Alert
• Fuel Tank Capacity: 3.1 litres
• Engine Oil Capacity: 0.6 litres
• Dry Weight: 16.1 kg
• Dimensions (L x W x H): 321 x 376 x 346 mm

TYPICAL APPLICATIONS

• Plate compactors and construction equipment
• Water pumps
• Generators
• Welding equipment
• Agricultural and horticultural machinery
• Tillers and cultivators
• Industrial machinery
• Other equipment requiring a Honda GX200 engine with tapered shaft

IMPORTANT INFORMATION

The GX200 is available in a number of different configurations, including several PTO shaft and starting arrangements. The VSP version has a tapered crankshaft and should not be confused with GX200 variants fitted with straight 20 mm or 3/4-inch PTO shafts. Check the existing engine specification and shaft configuration carefully before ordering.

Always check the OEM number, engine model and PTO shaft configuration before fitting to ensure this engine is suitable for your particular machine.
