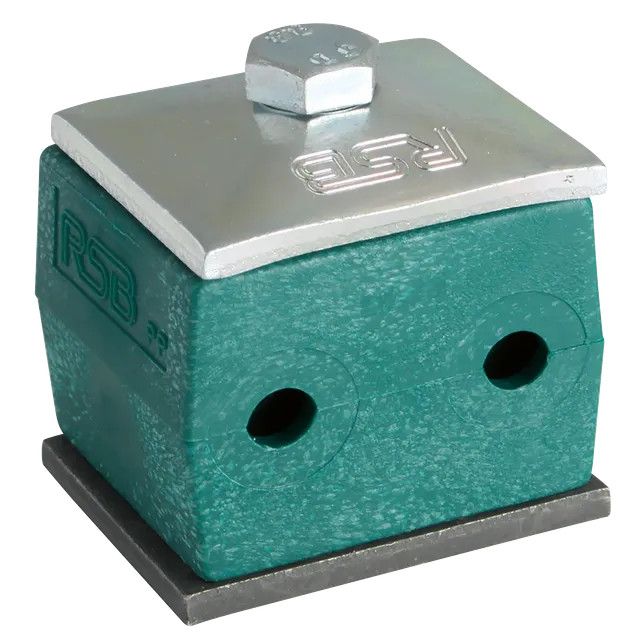

Hydraulic Hose Clamp 22mm

The Hydraulic Hose Clamp 22mm is a heavy-duty DIN 3015 Series B tube clamp designed to securely retain 22mm outside diameter (OD) hydraulic pipes, rigid tubing, and hose assemblies in hydraulic and fluid power systems. Engineered to minimise movement, vibration, and mechanical stress, the clamp helps protect hydraulic lines from wear while improving the reliability and service life of the installation. Manufactured in accordance with DIN 3015 and DIN 3570 standards, these clamps are widely used across OEM machinery, industrial equipment, and mobile hydraulic applications.

Constructed from durable polypropylene clamp halves with compatible steel mounting hardware, the clamp provides excellent resistance to vibration, weathering, oils, and many industrial chemicals. Its modular design allows it to be installed with the appropriate base plate, top plate, and fixing hardware to suit a wide variety of mounting configurations.

FUNCTION AND OPERATION

• Secures 22mm hydraulic pipes and hose assemblies
• Reduces vibration and mechanical stress on hydraulic lines
• Prevents pipe movement, chafing, and premature wear
• Helps minimise noise transmission through the machine structure
• Supports safe routing of hydraulic and fluid transfer systems
• Designed for modular installation using DIN 3015 clamp components

TECHNICAL DETAILS

• Type: Hydraulic tube clamp
• Tube Size: 22mm outside diameter
• Clamp Series: Series B (Standard Duty)
• Group Size: Group 3
• Standard: DIN 3015 / DIN 3570
• Material: Polypropylene clamp body
• Function: Pipe retention, vibration damping, and noise reduction
• Construction: Two-piece clamp assembly for use with compatible mounting hardware

TYPICAL APPLICATIONS

Suitable for a wide range of hydraulic and industrial equipment, including:

• Excavators
• Backhoe loaders
• Site dumpers
• Wheel loaders
• Agricultural machinery
• Hydraulic power units
• Industrial manufacturing equipment
• Mobile plant machinery
• Lubrication and fluid transfer systems
• OEM machine building

These clamps are commonly used wherever hydraulic tubing requires secure, vibration-resistant mounting to a machine frame or support structure.

IMPORTANT INFORMATION

Always confirm the outside diameter of the pipe, clamp series, and group size before ordering, as hydraulic tube clamps are manufactured to specific dimensional standards and are not interchangeable between different sizes or series. Using an incorrectly sized clamp can lead to inadequate support, excessive vibration, pipe wear, or damage to hydraulic components.

For optimum performance, install the clamp with the correct matching top plate, base plate, and fixing hardware, ensuring the pipe is fully seated before tightening. Periodic inspection is recommended on machines operating in high-vibration environments to maintain secure pipe retention and help prevent fatigue-related failures within the hydraulic system.
