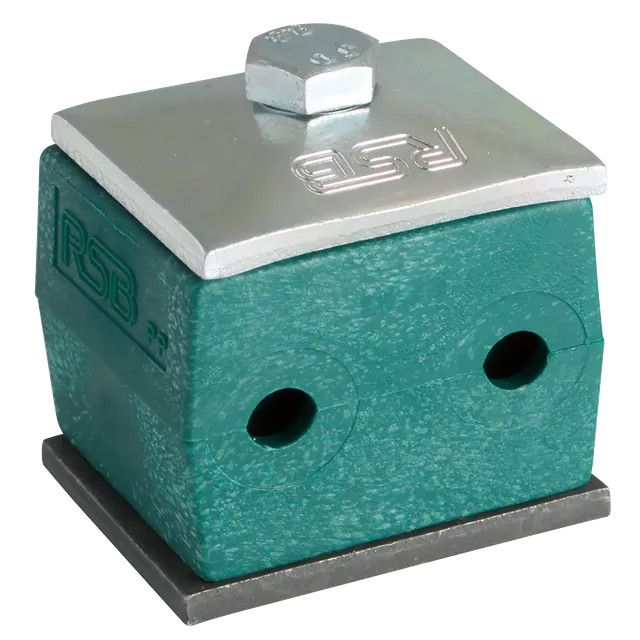

Hydraulic Pipe Clamp 15mm

The Hydraulic Pipe Clamp 15mm is a genuine DIN 3015 Series B standard-duty tube clamp designed for securing hydraulic pipes, rigid tubing, and hose assemblies in mobile and industrial hydraulic systems. It provides secure, vibration-damping support for 15mm outside diameter (OD) tubing, helping to prevent movement, wear, and fatigue failure in high-pressure hydraulic installations.

Manufactured as part of a modular clamp system, this clamp consists of two clamp halves and associated hardware, designed to hold hydraulic lines firmly in place while absorbing vibration and reducing noise transmission through the machine structure. It is widely used across OEM machinery, plant equipment, and hydraulic power systems.

FUNCTION AND OPERATION

• Secures 15mm hydraulic tubing and hose assemblies
• Reduces vibration and mechanical stress on hydraulic lines
• Prevents pipe movement and chafing during machine operation
• Helps minimise noise transmission through structures
• Supports safe routing of hydraulic systems
• Designed for modular installation in clamp rail systems

TECHNICAL DETAILS

• Type: Hydraulic tube clamp (complete set)
• Standard: DIN 3015 / DIN 3570 compliant
• Tube Size: 15mm outside diameter
• Clamp Series: Series B (standard duty)
• Group Size: Group 2
• Material: Polypropylene body with steel fixing hardware (varies by kit specification)
• Construction: Two-piece clamp with mounting plate and bolts
• Function: Pipe retention, vibration damping, and noise reduction

TYPICAL APPLICATIONS

Suitable for a wide range of hydraulic and industrial systems, including:

• Construction machinery hydraulic lines
• Excavators, dumpers, and loaders
• Agricultural machinery hydraulic circuits
• Industrial hydraulic power units (HPU)
• Machine tool hydraulic systems
• Lubrication and fluid transfer systems
• OEM equipment manufacturing and assembly

These clamps are commonly used wherever rigid or semi-rigid hydraulic tubing requires secure, vibration-isolated mounting to a chassis or frame structure.

IMPORTANT INFORMATION

Always confirm the correct tube outside diameter, clamp series, and group size before ordering, as DIN clamp systems are dimension-specific and not interchangeable between sizes or series. Although this hose clamp is designed for 15mm OD tubing, incorrect selection can lead to insufficient clamping force, pipe movement, or premature wear of hydraulic lines.

When installing, ensure the correct series components are matched (base, top plate, and hardware) and that mounting surfaces are clean and properly aligned. Regular inspection is recommended in high-vibration environments to ensure clamp integrity and prevent hydraulic line damage over time.
