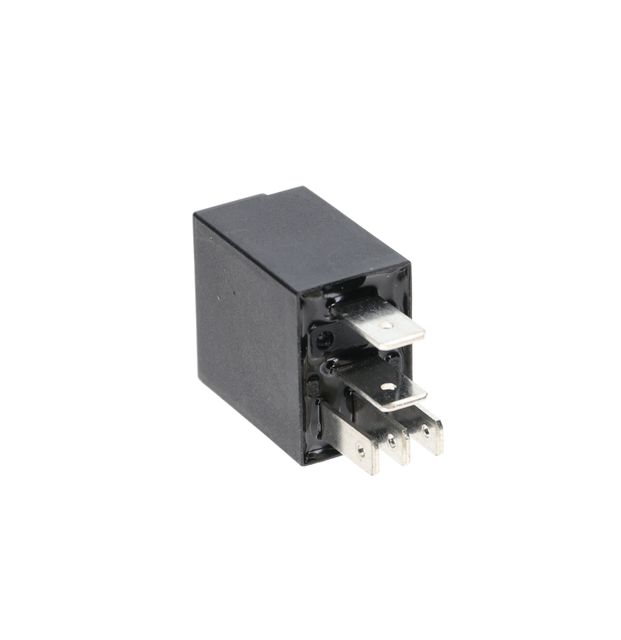

Bomag Stop Relay

The Bomag Stop Relay (OEM 05766955) is a replacement electrical relay designed for compatible Bomag construction and compaction equipment. The relay forms part of the machine's electrical control system, switching an electrical circuit in response to the control signals from the machine's operating and safety systems. Parts information identifies 05766955 as a relay used within Bomag central electrical and powerboard assemblies.

Designed for the demanding conditions of construction machinery, the relay provides dependable electrical switching despite vibration, temperature changes and repeated operation. Replacing a worn or failed relay helps restore reliable operation of the associated electrical circuit and can resolve faults caused by intermittent or failed switching.

FUNCTION AND OPERATION

• Switches an electrical circuit within the machine's control system
• Responds to electrical control signals from associated machine systems
• Supports reliable operation of connected electrical components
• Designed for repeated electrical switching
• Helps maintain dependable machine control and shutdown functions
• Replacement for a worn, failed or faulty original relay

TECHNICAL DETAILS

• OEM Number: 05766955
• Manufacturer: Bomag
• Component: Electrical relay
• Type: Electromagnetic relay
• Application: Selected Bomag construction and compaction equipment
• Associated system: Central electrical / control system

TYPICAL APPLICATIONS

• Bomag BW-series rollers
• Bomag BW 120 AD-5
• Bomag BW 216 D-5
• Bomag BW 266 TW
• Bomag BW 24 RH
• Bomag central electrical assemblies
• Construction and compaction machinery

IMPORTANT INFORMATION

A faulty relay can cause intermittent operation or complete failure of the electrical circuit it controls. If a relay is suspected of failing, the associated wiring, terminals, fuses and control signals should also be checked before replacement.

Always confirm the machine model and serial number before ordering to ensure the correct relay is fitted. Bomag uses machine-specific electrical configurations, and its current parts catalogue requires the machine serial number to identify the correct parts information.
