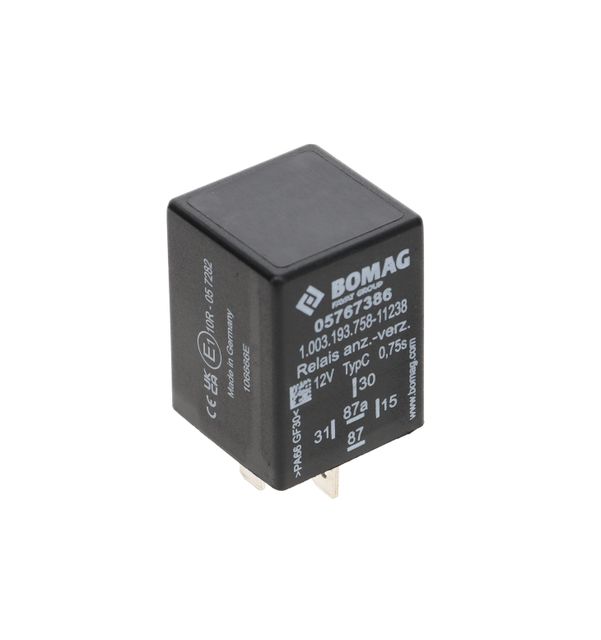

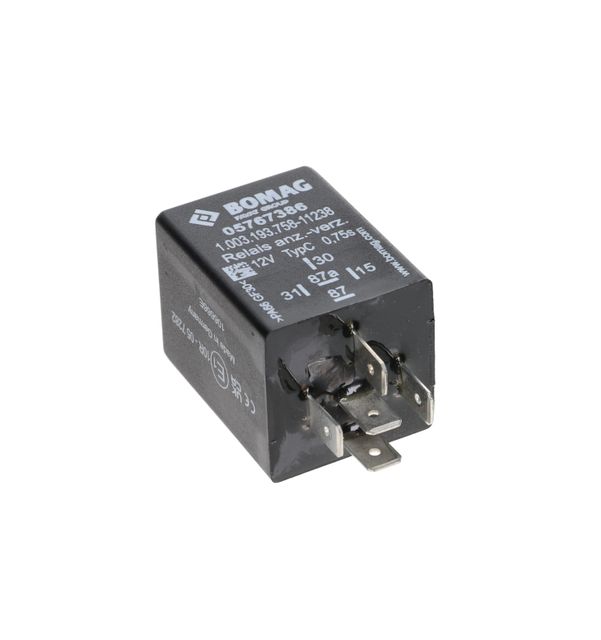

Bomag Timer Relay - OEM Number: 05767386

The Bomag Timer Relay (OEM 05767386) is a replacement electrical control component designed for selected Bomag compaction and construction equipment. The relay controls the operation of an electrical circuit using a preset time delay, allowing specific machine functions to be activated or deactivated for a controlled period.

Designed for the demanding environment of construction machinery, the timer relay is built to provide dependable electrical switching despite vibration, temperature changes and repeated operation. Its 12V electrical supply and 0.75-second timing function make it suitable for applications requiring a precise, short-duration switching sequence.

FUNCTION AND OPERATION

• Controls an electrical circuit using a timed switching function
• Provides a controlled 0.75-second timing period
• Allows short-duration electrical functions to operate automatically
• Helps maintain consistent machine operation
• Reduces the need for continuous manual electrical switching
• Designed to withstand vibration and demanding working conditions

TECHNICAL DETAILS

• OEM Part Number: 05767386
• Type: Timer relay
• Voltage: 12V
• Timing: 0.75 seconds
• Function: Timed electrical circuit control
• Application: Selected Bomag construction and compaction equipment
• Alternative Reference: 1.003.193.758

TYPICAL APPLICATIONS

Suitable for selected Bomag machinery fitted with the compatible 12V timer relay system, including various:

• Vibratory rollers
• Soil compactors
• Asphalt rollers
• Light compaction equipment
• Other Bomag construction machinery

Always verify compatibility using the machine model, serial number and OEM part number before ordering, as electrical systems and relay specifications can vary between machine models and production versions.

IMPORTANT INFORMATION

A faulty timer relay can cause the associated electrical function to operate incorrectly, fail to operate, remain energised, or activate for the incorrect amount of time. Electrical faults elsewhere in the machine can produce similar symptoms, so the relay, socket and associated wiring should be checked as part of the diagnosis.

When replacing the relay, inspect the relay socket, terminals, wiring and surrounding electrical components for corrosion, loose connections, heat damage or water ingress. Ensure the replacement has the correct 12V rating and 0.75-second timing specification before installation.
